Introduction

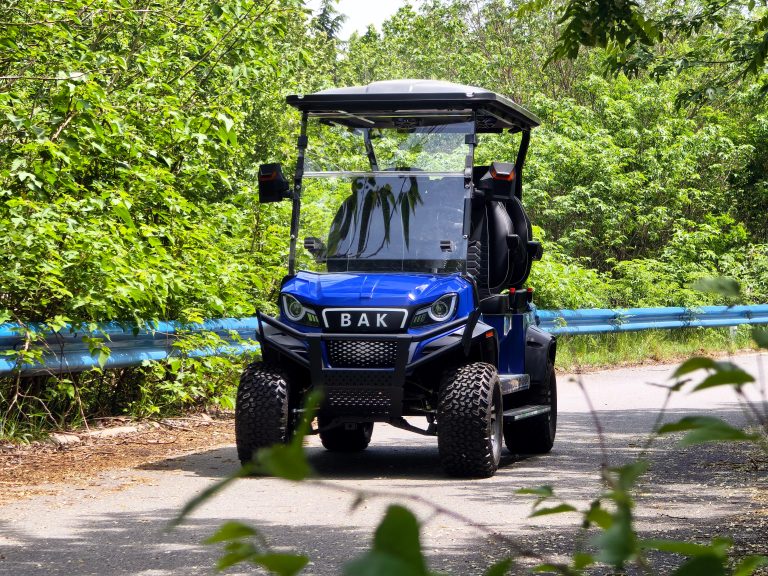

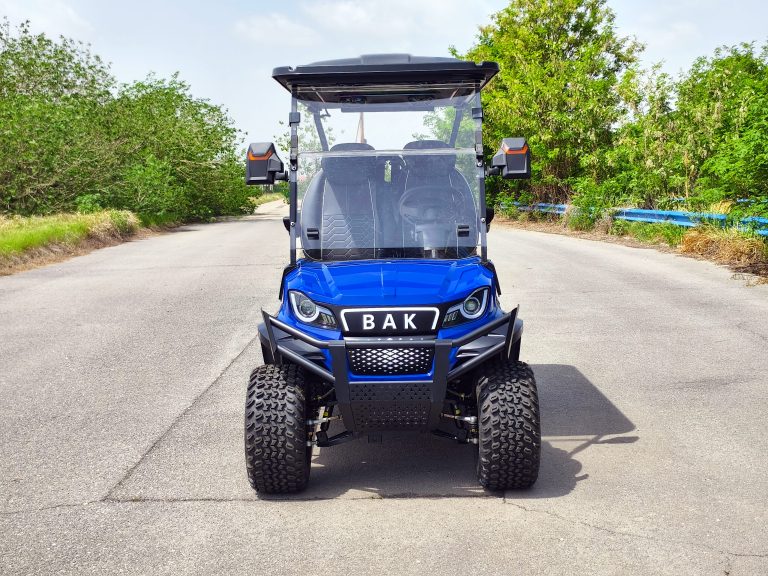

This 4-seater forward-facing golf cart is expertly designed to deliver exceptional comfort and maneuverability, ideal for golf courses, resorts, and community use. Unlike traditional 4-seater golf carts, all 4-seater forward-facing golf cart, offering each passenger an enhanced seating experience and front-facing view while optimizing weight distribution for smoother, higher maneuverability.

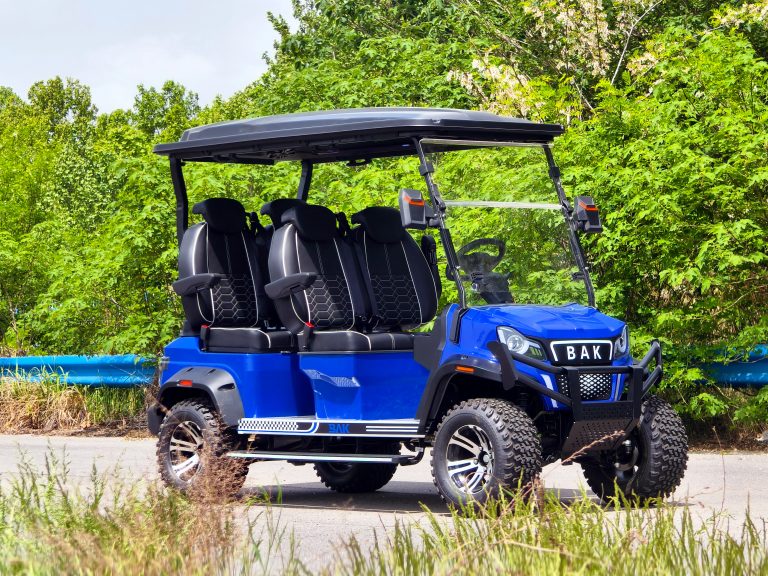

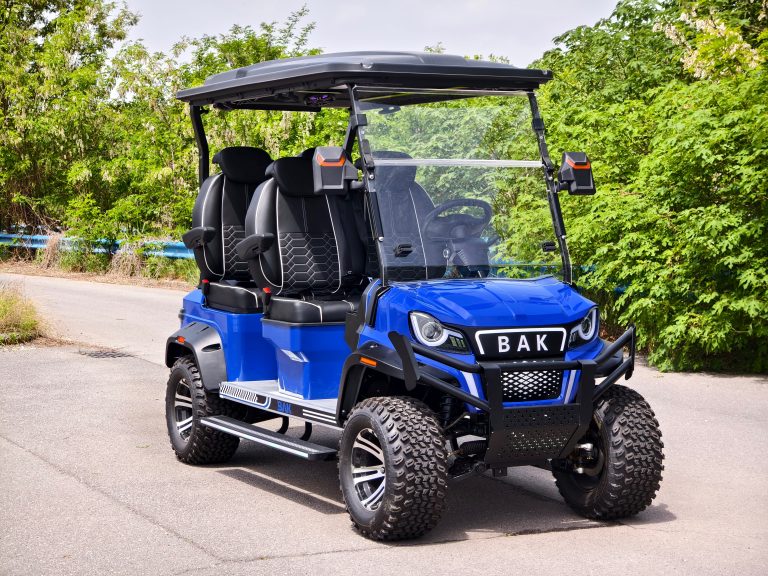

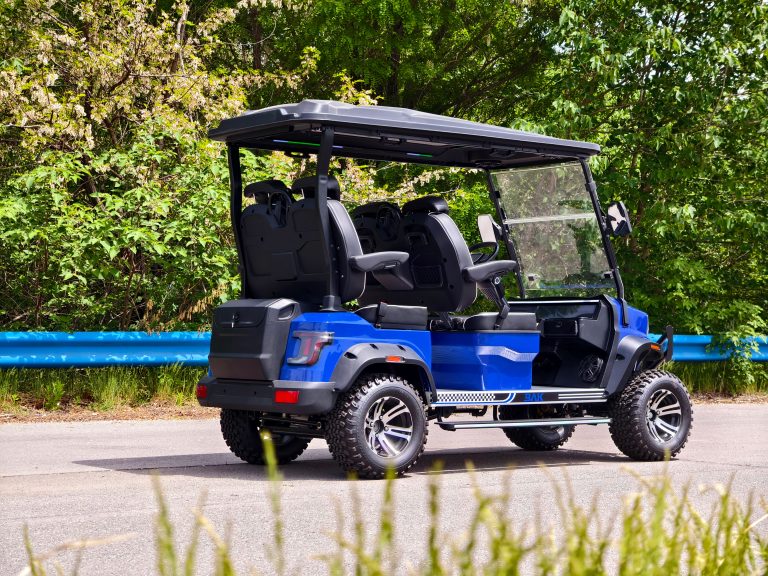

In terms of seat design, all seats face forward, not only enhancing passenger comfort but also ensuring clear visibility for longer rides. Traditional golf carts often have rear-facing seats, which can inconvenience passengers seated in the back. This forward-facing design eliminates such discomfort, making both driving and riding more enjoyable.
Key Features:
• Forward-Facing Seat Layout: All seats are front-facing, ensuring better comfort and forward visibility for every passenger.
• Optimized Weight Distribution: The forward seat design allows for balanced weight distribution, enhancing stability and control.
• Premium Seat Design: High-quality seats provide maximum comfort for long rides, with ergonomic design ensuring an outstanding experience in any environment.
• Electric Drive System: The efficient, quiet motor offers a smooth, eco-friendly driving experience.
• Multi-Use Versatility: Whether on golf courses, resorts, or in communities, this cart combines comfort and efficiency, making it an ideal choice for daily transit and recreational use.
This 4-seater forward-facing golf cart combines high comfort, balanced weight distribution, and advanced electric drive technology, perfectly suited for users seeking an exceptional driving experience. Ideal for daily use on golf courses, or as a practical transportation solution in resorts and scenic areas.
Color Options
Here is an introduction to the colors of PURE EV P20
Parameters
| Product Name | 4-seater forward-facing golf cart |
| Seating capacity | 4 |
| Configuration | Standard Configuration |
| Basic technical parameters | |
| Overall dimensions: length*width*height (mm) | 3025mm*1180mm*1890mm |
| Rated passenger capacity (persons) | 4 |
| Wheelbase (mm) | 2120mm |
| Front wheel track (mm) | 1010mm |
| Rear track (mm) | 1040mm |
| Vehicle weight (kg) | 550KG (including battery) |
| Maximum speed (mph) | 25 |
| Maximum slope | 25% |
| Maximum driving range (miles) | 80-100 km/50-62 miles |
| Minimum ground clearance (mm) | 170mm |
| Minimum turning radius (mm) | 4000 |
| Braking distance (mm) | <6m |
| Electrical System | |
| Motor | 48V AC motor power: 5KW |
| Battery | 48V150Ah |
| charger | Intelligent vehicle charger 48V/25AH |
| Charging time | <5-6h (discharge rate 80%) |
| Suspension and brake systems | |
| Front suspension | Double wishbone independent front suspension |
| Rear Suspension | Integral rear axle, speed ratio 12.3:1, coil spring shock absorber + cylinder hydraulic shock absorber + rear stabilizer bar |
| Braking system | Four-wheel hydraulic brakes, four-wheel disc brakes + electronic parking brake |

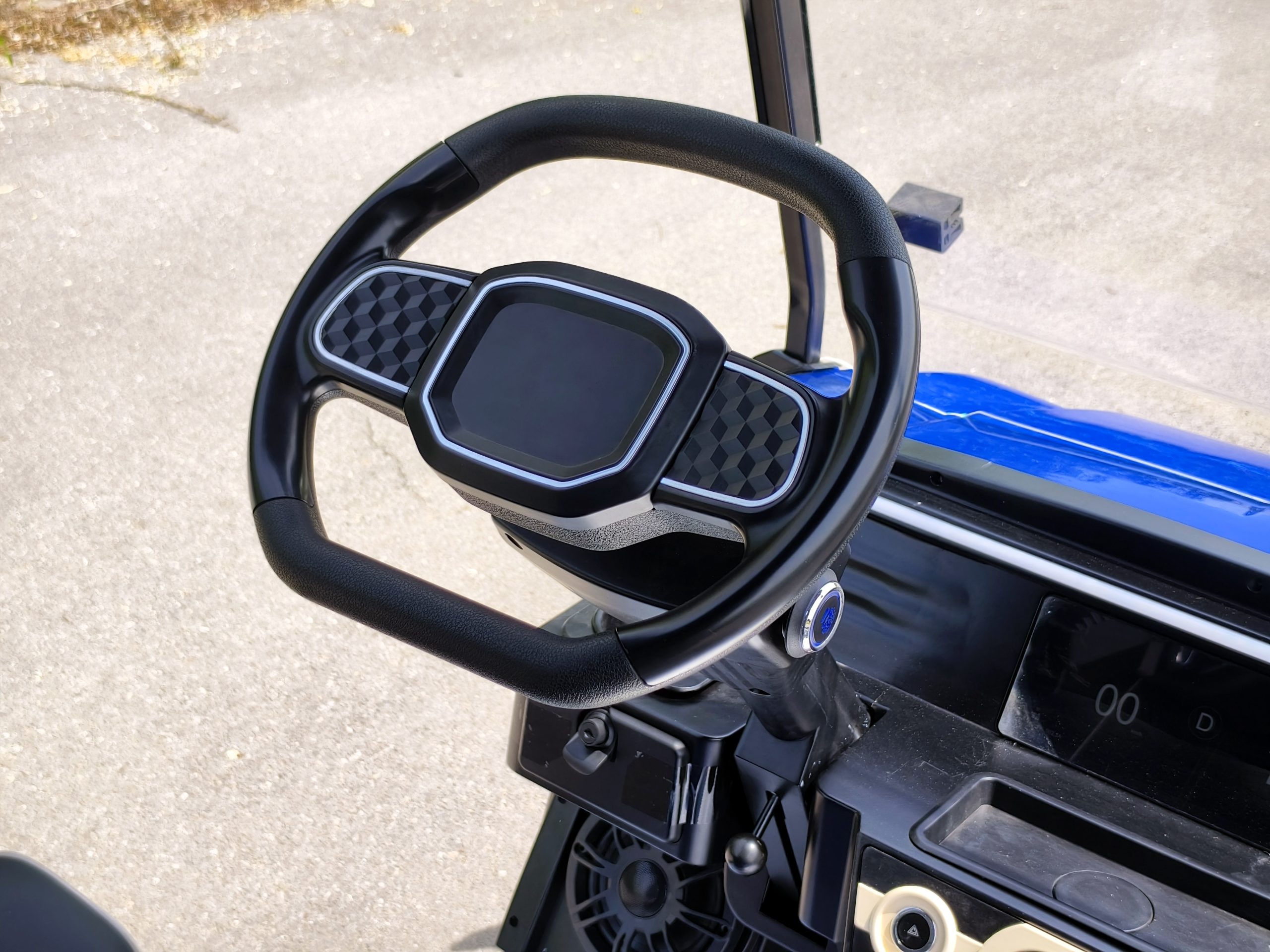

| Steering system | Bidirectional rack and pinion steering system, automatic clearance compensation function |
| Standard Configuration | |

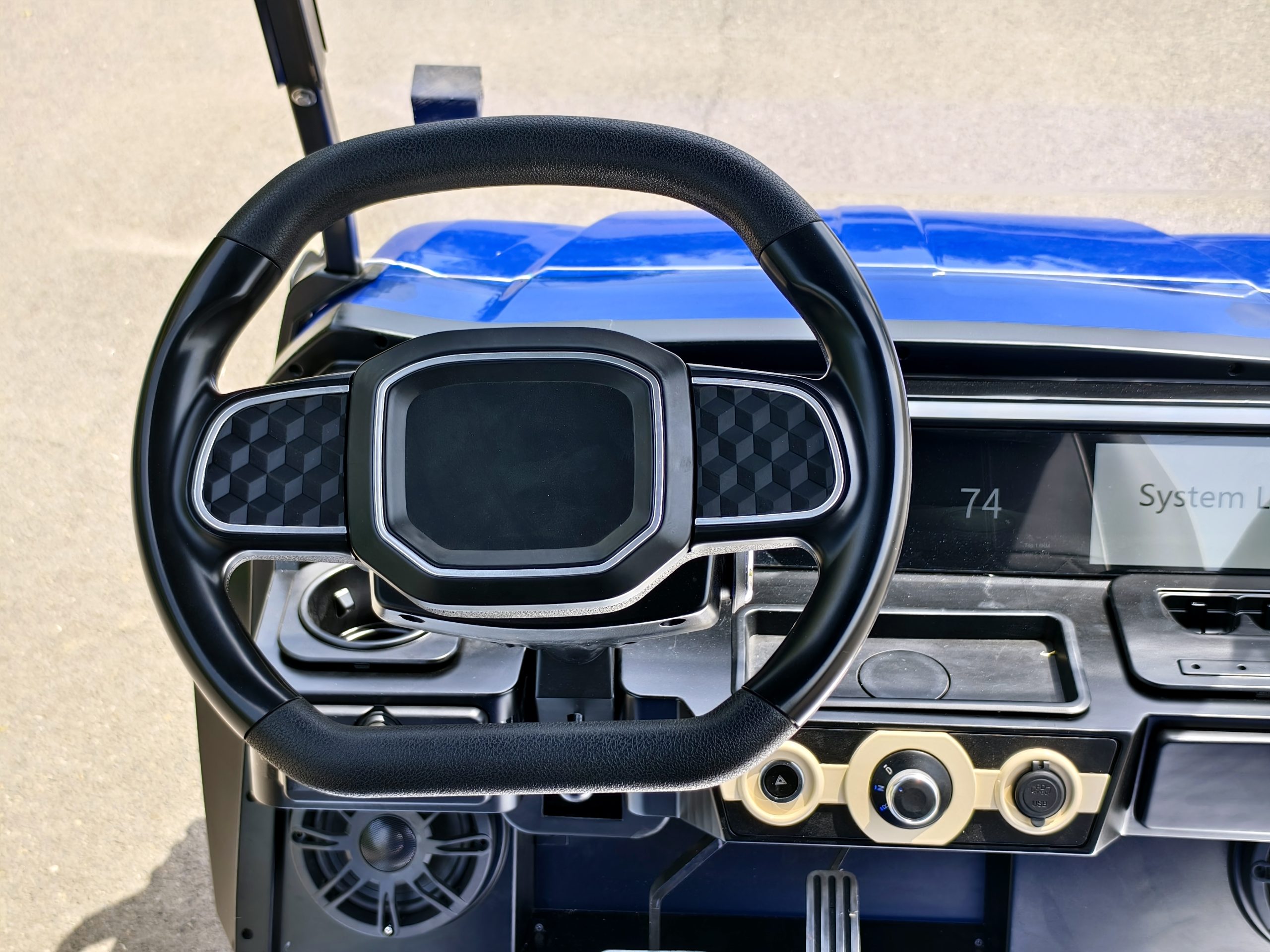

| Display | IP65 waterproof 10.1-inch crystal multimedia instrument cluster with vehicle detection function and reversing image |
| Sound System | IP66 full range speaker H065B (with light) |

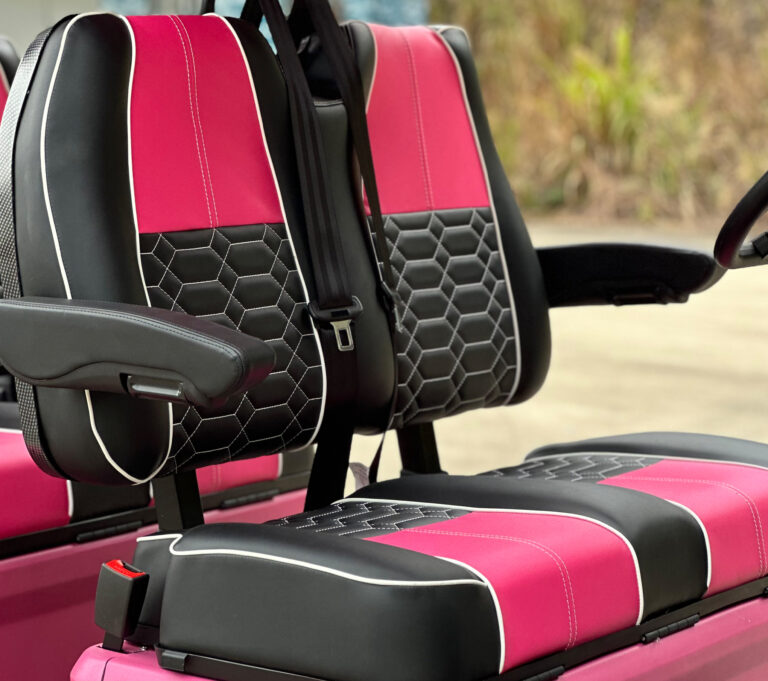

| Seats | Integral foam seat cushion + solid color high-grade imported leather |
| floor | Rubber non-slip floor |
| Frame | High-strength sheet metal trapezoidal frame |
| Data transmission port | |
| USB charging port | |
| Body lights | LED front combination lights + LED tail lights + LED daytime running lights |
| Front windshield | Transparent foldable glass |
| ceiling | Matte black square tube frame + PP black injection molding ceiling |
| seat belt | Three-point seat belt |
| Cup holder | Driver and co-driver |
| Front bumper material | Injection Molding |

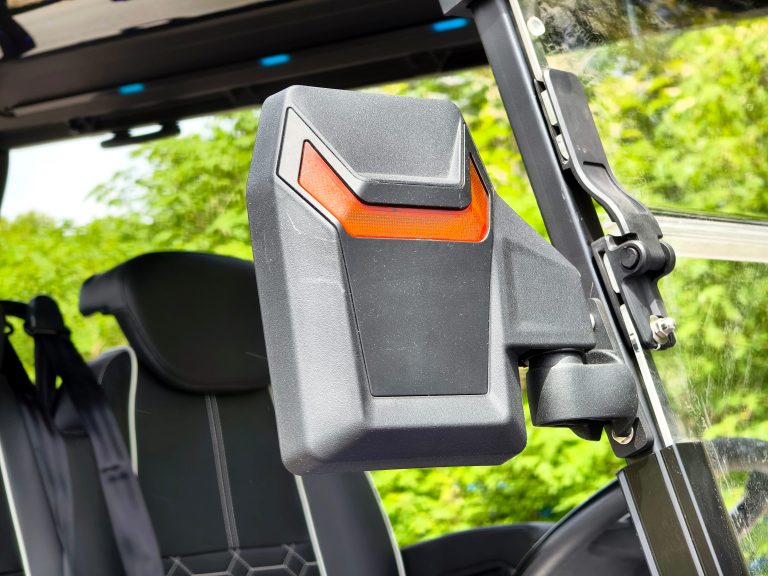

| rearview mirror | Standard |
| Front bumper | |
| Optional configuration | |
| Battery Optional | 48V150Ah/48V200Ah/72V100Ah/72V150Ah |
| Central control instrument (without logo when powered on) | 10-inch LCD screen |
| Vehicle start | One-click start |
| Soundbar | Long square |
| Off-road spotlights | |
| Ceiling light strip | |
| Chassis flashing lights | |
| Reversing Image | 360° reversing image |
| Tire type | Road tires, off-road tires |
| Tire Optional Specifications | 12 inches, 14 inches, 15 inches |
| Net color | Silver plating |
| Vehicle identification | "BAK" logo/customized LOGO |
| Front windshield | Brown glass front windshield, front windshield with electric wiper |
| Instrument panel | Water transfer printing |
| Floor material | Aluminum floor |
| rearview mirror | With turn signal |
| Front storage basket | |
| Seats | With headrest |

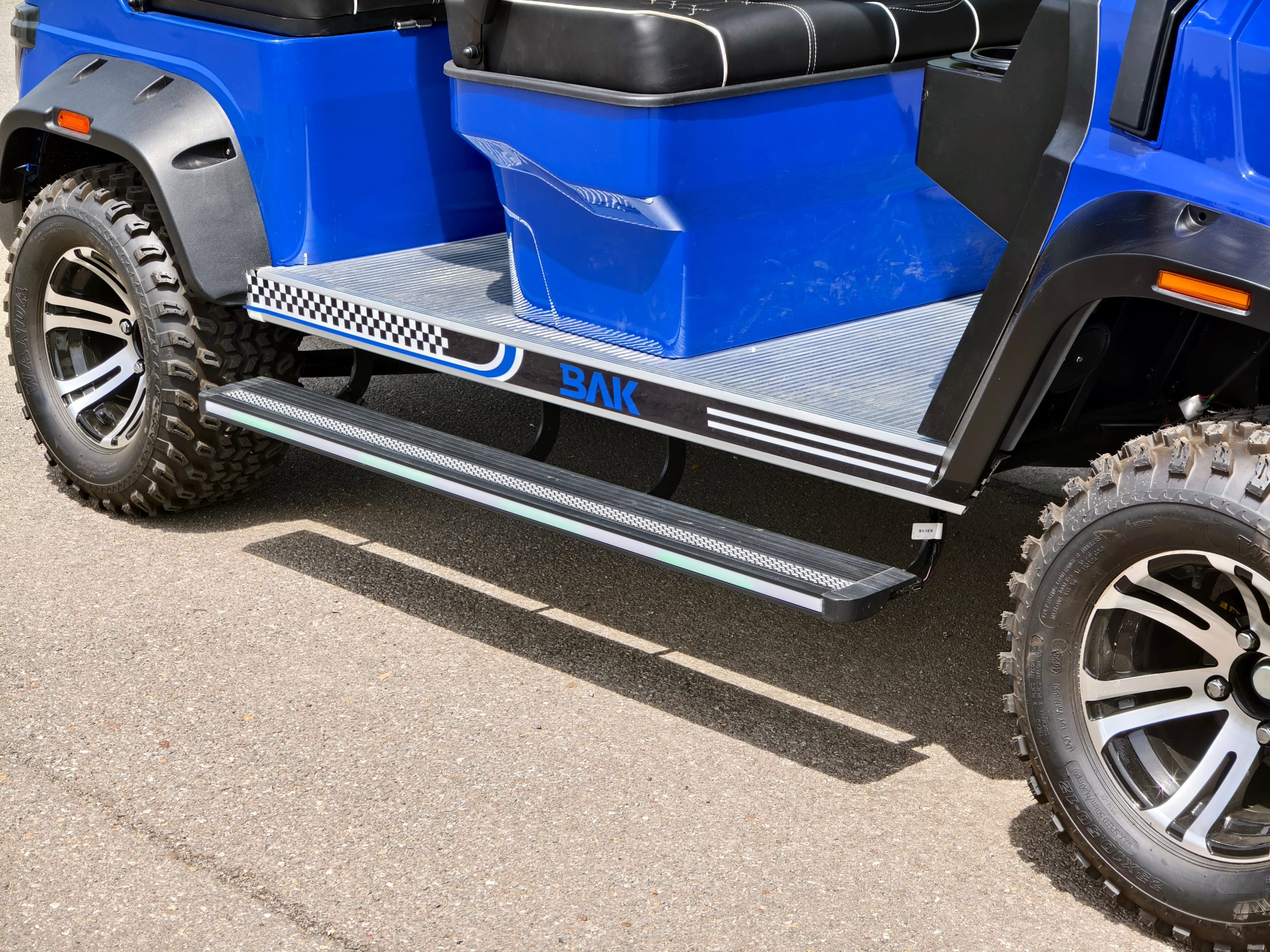

| Steps for boarding and exiting | Iron, aluminum |
| Seat Color | Standard old dark brown (without headrest), edging color dark brown |
Optional Accessories List
Add Accessories
BAK Golf Cart – Green Travel, Enjoy Comfortable Experience
Function Upgrade
Wheel style can be upgraded！
BAK Golf Cart – Green Travel, Enjoy Comfortable Experience
Interior Upgrades
Custom parts
Wheel Upgrade
Tire size can be upgraded!
Wheel style can be upgraded！
Rust-proof Upgrade
Power Upgrade
| Power upgrade | Standard version | Upgrade Ⅰ | Upgrade Ⅱ | Upgrade Ⅲ |
| 48V150Ah | 48V200Ah | 72V100Ah | 72V150Ah | |
| Nominal Voltage (V) | 48 | 48 | 48 | 48 |
| Nominal Capacity(Ah) | 100 | 100 | 100 | 100 |
| Rated Energy(kWh) | 4.8 | 4.8 | 4.8 | 4.8 |
| Cell Material Type | LiFePO4(LFP) | LiFePO4(LFP) | LiFePO4(LFP) | LiFePO4(LFP) |
| Battery Case Materia | Cold-rolled Steel | Cold-rolled Steel | Cold-rolled Steel | Cold-rolled Steel |
| Battery Weight (kg) | 52 ± 3 | 52 ± 3 | 52 ± 3 | 52 ± 3 |
