Introduction
Application Scenarios
• Farms and Ranches: Effortlessly transport large dogs and make operations more efficient.
• Parks and Countryside Travel: Take your pet along to explore natural landscapes and enjoy comfort and freedom.
• A Must-Have for Pet Lovers: Combining pet safety with driving pleasure, this multi-functional vehicle is an ideal choice.
Key Features

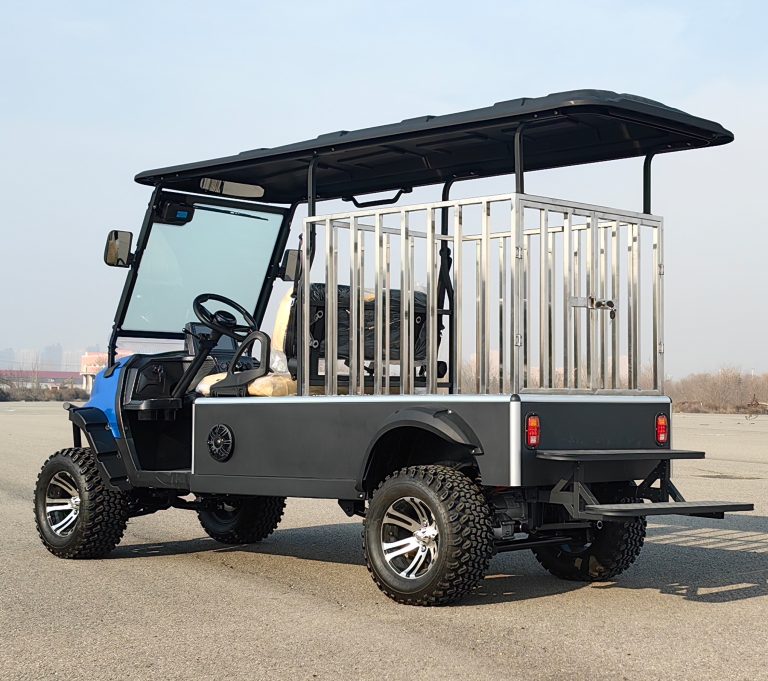

1. Dedicated Safe Space

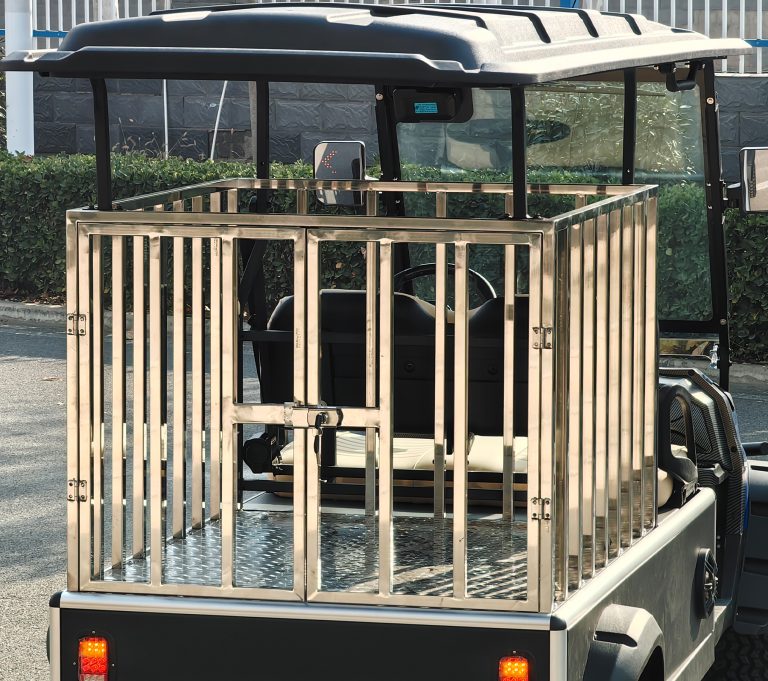

The rear cage is made of high-strength materials, offering a spacious and comfortable area for your pet. It prevents discomfort or danger caused by crowding or collisions during rides.
2. Protect Your Pet from Potential Dangers
With safety at its core, the design positions your pet at the rear of the vehicle, shielding them from potential risks posed by oncoming traffic. Truly, “Peace of Mind for Your Pet.”
3. Combination of Functionality and Comfort
The sunshade roof provides all-weather protection, shielding pets from direct sunlight or rain. Elevated tires and an off-road chassis ensure a smooth ride, making it suitable for various terrains.
Design with Your Pet in Mind
This is more than just a travel tool—it’s a perfect blend of safety and comfort. Choose this golf cart to give your pet the care they deserve and make every journey a stress-free and enjoyable experience!
Color Options
Here is an introduction to the colors of PURE EV P20
Parameters
| BASIC PARAMETERS | |
| Exterior dimensions L * W * H (mm) | 3695*1340*2070 |
| Hopper size (L*W*H) | 1245*1035*800 |
| Rated passenger capacity (persons) | 2 |
| Wheelbase (mm) | 2436 |
| Front track (mm) | 1015 |
| Rear track (mm) | 1075 |
| Curb weight | 670 |
| Maximum speed (MPH) | 30 |
| Maximum climbing grade | 30 |
| Maximum driving range (mile) | 60 |
| Minimum ground clearance (mm) | 170 |
| Minimum turning radius (m) | 5 |
| Braking distance (m) | Full initial speed 20km/h 4.5 |
| ELECTRICAL SYSTEM | |
| Battery type | BAK lithium batteries |
| Battery capacity | 48V150ah |
| Charger | Vehicle-mounted fully automatic smart charger |
| Charging time(H) | 6 |
| Motor | AC motor with 5KW power |
| Central control instrument | International famous brand electronic control system |

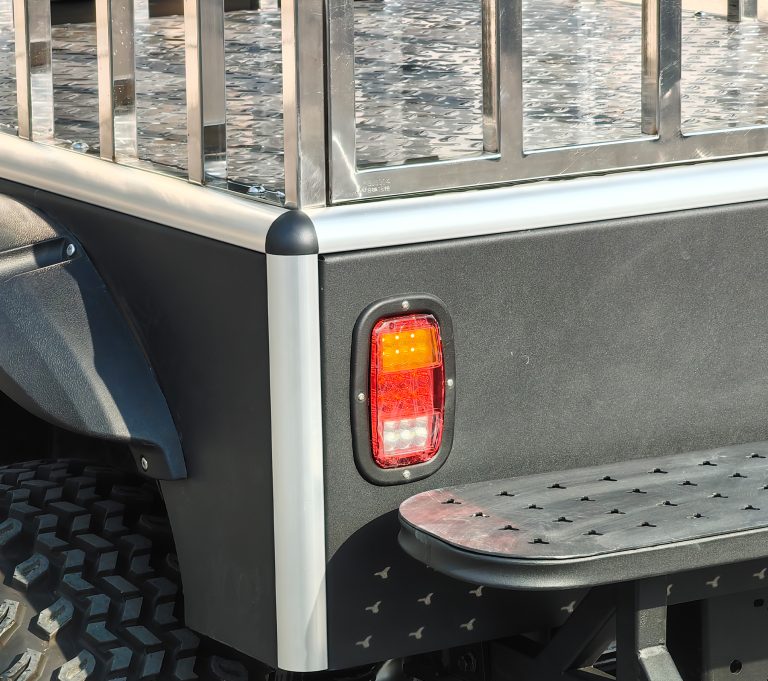

| Body lights | LED front combination light + LED rear tail light + LED daytime running light |
| CHASSIS SYSTEM | |
| Front suspension | Double wishbone independent suspension |
| Rear suspension | Trailing arm non-independent suspension |
| Braking system | Front and rear disc brakes, electromagnetic automatic parking system |
| Tire type | 12-inch all-terrain tires/23X10-12，P825 |
| BODY TRIM | |
| Front windshield | laminated glass |
| Roof | Injection molded canopy |
| Floor material | Aluminum profile flooring |
| Body | Injection molded front and rear covers |
| Seats | leather covered |
Optional Accessories List
Add Accessories
BAK Golf Cart – Green Travel, Enjoy Comfortable Experience
Function Upgrade
Interior Upgrades
Custom parts
Wheel Upgrade
Tire size can be upgraded!
Wheel style can be upgraded！
Rust-proof Upgrade
Power Upgrade
| Power upgrade | Standard version | Upgrade Ⅰ | Upgrade Ⅱ | Upgrade Ⅲ |
| 48V150Ah | 48V200Ah | 72V100Ah | 72V150Ah | |
| Nominal Voltage (V) | 48 | 48 | 48 | 48 |
| Nominal Capacity(Ah) | 100 | 100 | 100 | 100 |
| Rated Energy(kWh) | 4.8 | 4.8 | 4.8 | 4.8 |
| Cell Material Type | LiFePO4(LFP) | LiFePO4(LFP) | LiFePO4(LFP) | LiFePO4(LFP) |
| Battery Case Materia | Cold-rolled Steel | Cold-rolled Steel | Cold-rolled Steel | Cold-rolled Steel |
| Battery Weight (kg) | 52 ± 3 | 52 ± 3 | 52 ± 3 | 52 ± 3 |
