Introduction

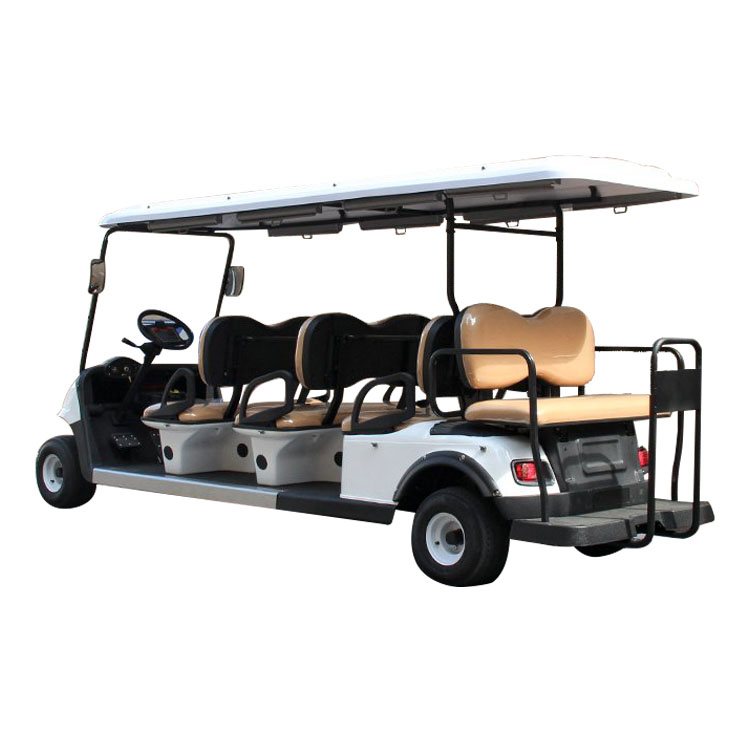

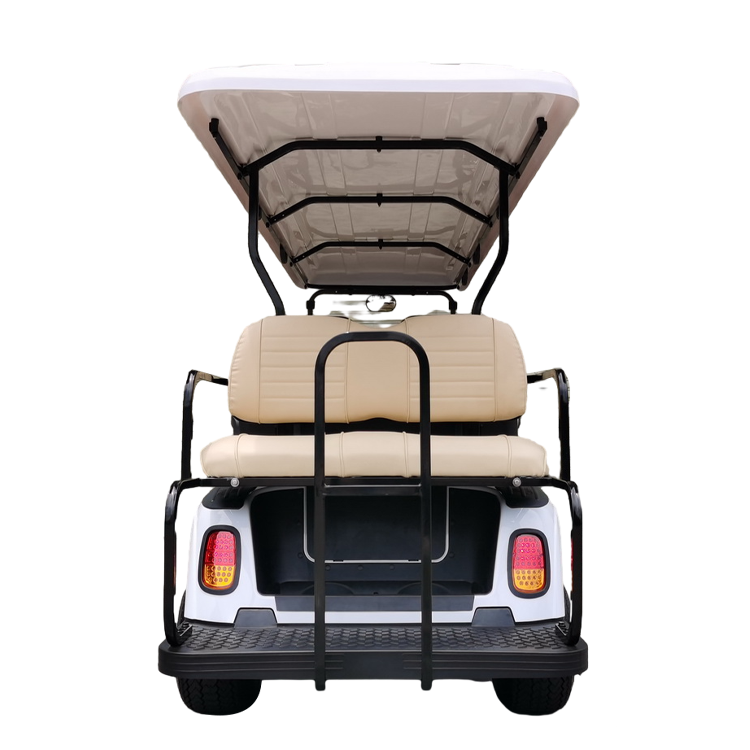

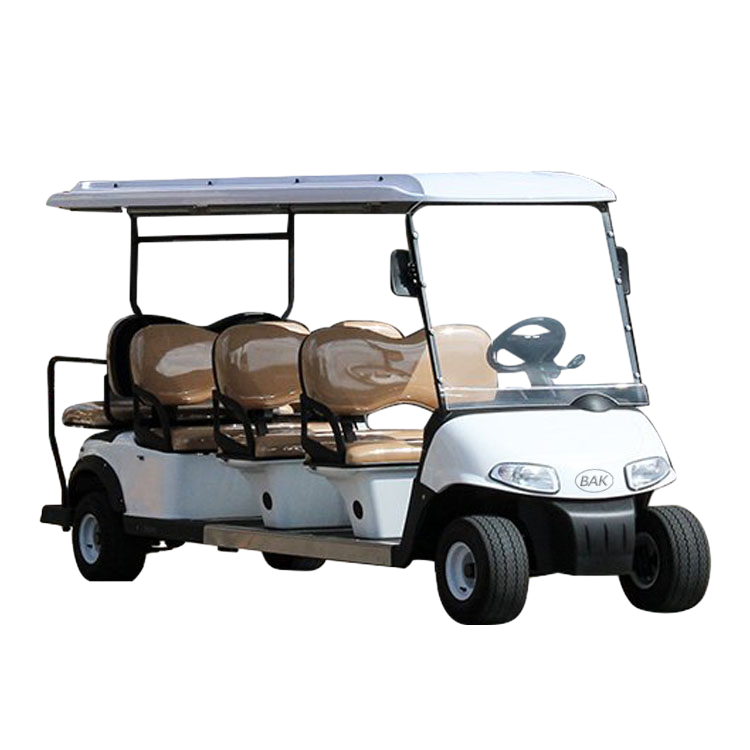

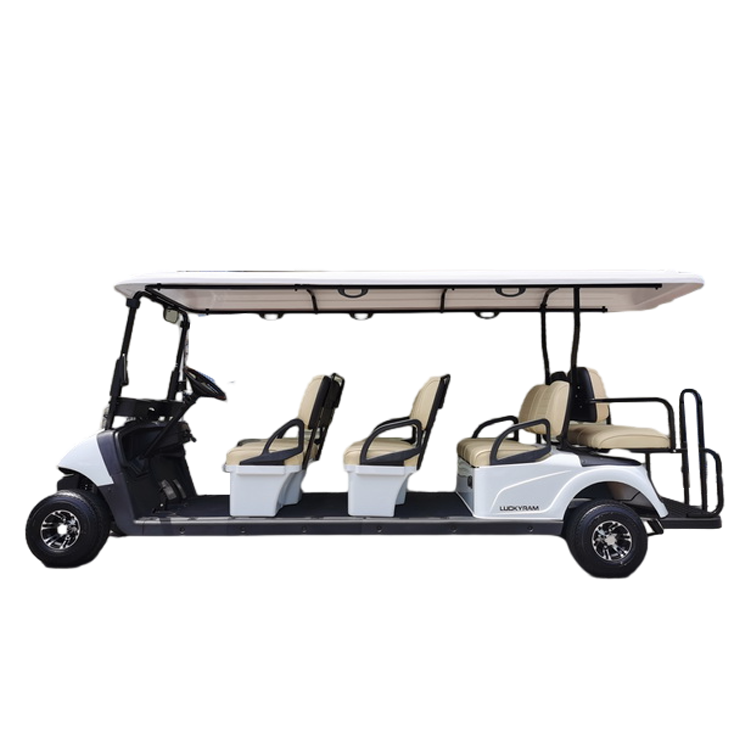

The A-C6+2 6+2 seat low chassis golf cart is designed for maximum capacity and comfort, making it ideal for transporting larger groups across the golf course. With seating for up to eight passengers, this cart is perfect for events, group outings, or simply ensuring efficient transportation around the course.
The low center of gravity ensures that the cart remains stable, even when fully loaded, providing a smooth and secure ride for all passengers. Powered by a quiet and efficient electric motor, the 6+2 cart operates with minimal noise, allowing for an uninterrupted golfing experience. Its low-profile design helps reduce turf impact, preserving the course’s condition while providing a comfortable and convenient transportation solution.

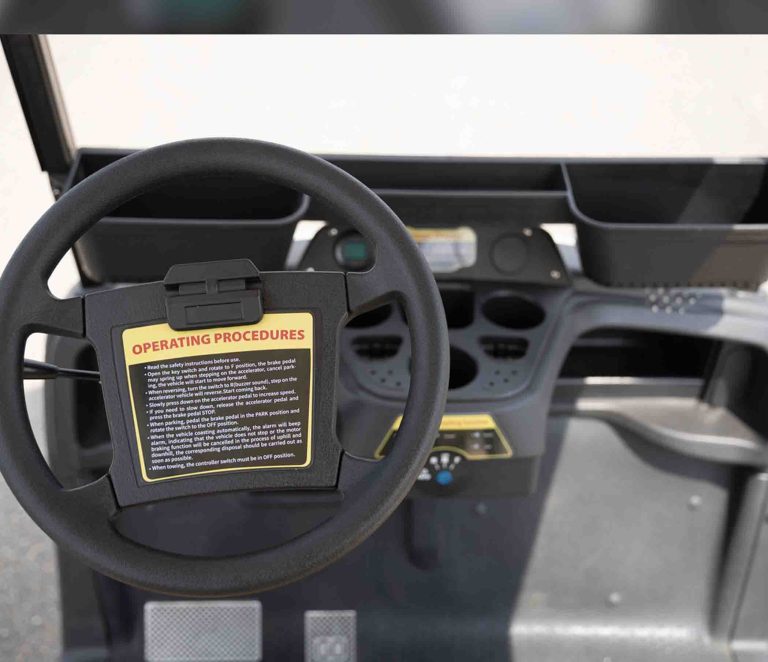

Display Screen
Battery Capacity Indicator, Vehicle Mounted Electronic Meter
In/Out Switch
Combination in/out switch

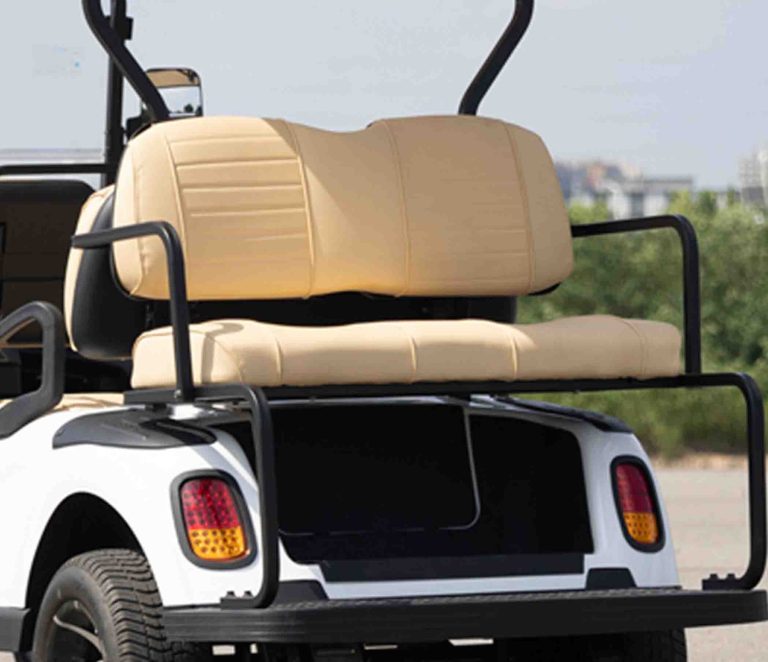

Seats
Foam molded core, UV-resistant seat cushion
Ceiling
Thickened blister molding material
Floors
Wear-resistant and non-slip rubber material

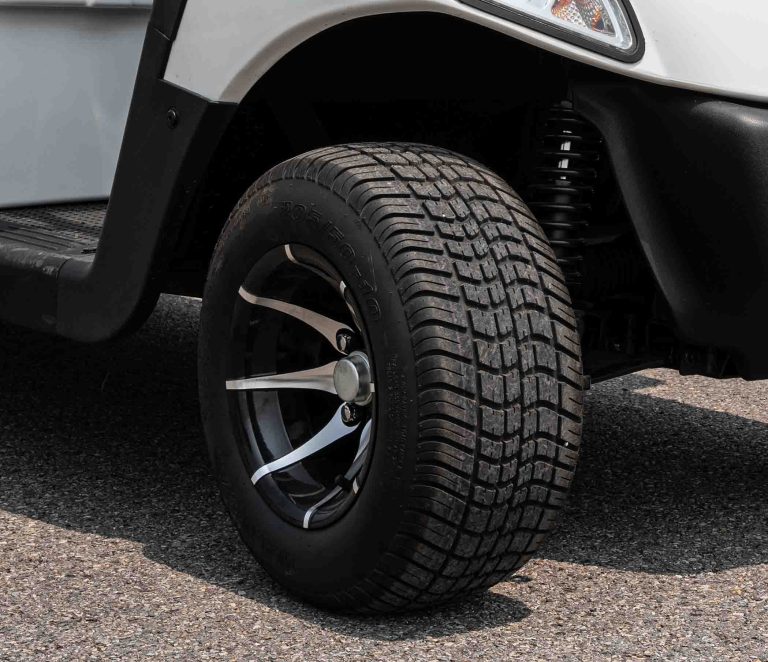

Tire
Diameter 18*8.5-8
Color Options
Here is an introduction to the colors of PURE EV P20
Sky blue
Ferrari red
Pink
Black
Champagne
Green
LEMON GREEN
RED
YELLOW
SLIVER WHITE
BLUE
WHITE
Parameters
| SPECIFICATION | |
| Size Overall | 4270*1175*1850mm |
| Net Weight | 710kg |
| Rated Passenger | 8 |
| Front/Rear Wheelbase: | 3230mm |
| Front/Rear Wheel Track: | Front885mm/Rear980mm |
| Min Ground Clearance: | 120mm |
| Min Turning RadiusL: | 3.20m |
| Max Speed: | 25MPH |
| Climbing Ability: | 30% |
| Endurance: | 70-80mile |
| ELECTRIC SYSTEM | |
| Motor | 48V5KW AC motor |
| Controller | AC controller |
| Battery Type | Maintenance-free deep cycle lead-acid battery 8V*6 pieces 48V |
| Charger | 48V25A intelligent fully automatic charger |
| DC converter | 48V/12V300W |
| SUSPENSION & BRAKE SYSTEM | |
| Steering system | Bi-directional push rack and pinion steering gear |
| Braking System | Self-adjusting mechanical brake and anti-skid design |
| Rear axle system | Integral infinitely variable rear axle with main reduction and differential |
| Front damping system | Independent suspension, coil springs |
| Rear damping system | Simple hydraulic shock absorbers for steel plate springs |
| EXTERIOR | |
| Front windshield | Special acrylic windshield |
| Body | Body of automobile: ABS with automotive paint（ 4-seater is injection molded with automotive paint;） |
| Ceiling | The 2-seater is ABS injection molding material; the others are thickened blister molding material. |
| Seat | Foam molded core, UV-resistant seat cushion |
| Floor | Wear-resistant and non-slip rubber material |
| Frame | High-strength steel structural parts, electrophoretic surface treatment process |
Optional Accessories List
Add Accessories
Additional accessories enhance your golf cart’s versatility. From practical roof racks to protective rain curtains, these accessories not only increase functionality but also broaden the cart’s adaptability, readying it for any challenge.ection.
Aluminum Alloy Cargo Box
BAK Golf Cart – Green Travel, Enjoy Comfortable Experience
Front storage box
Plastic Cargo Box
Five-Grid Rearview Mirror

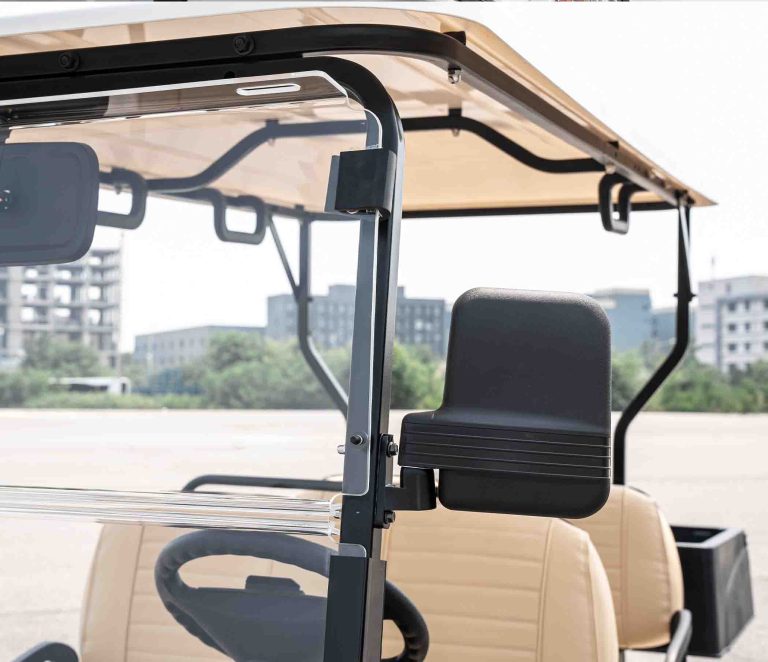

Reversing Mirror with Turn Signal
Getting on and off footrest (iron) single unit
Sand Bottle
Steps for getting on and off the vehicle (aluminum alloy)
Steps for getting on and off the vehicle (iron)
Roof Rack
Ball Washer
Car Hood
Golf Cart Cover Bag
Rain Curtain
Rear Storage Basket Assembly
Function Upgrade
Function upgrades add intelligence and enjoyment to your golf cart. Roof lighting sets the mood, dashboard speakers provide entertainment, and USB ports ensure convenience, making each journey more pleasant and user-friendly.
Windshield Wipers
one button start
RotarySwitches
Roof off-road Spotlights
Ceiling Atmosphere Lighting
Dashboard speakers
Round Sound Bar
Square Soundbar
Snail Trumpet
Interior Upgrades
Interior upgrades transform your golf cart into a luxurious mobile space. From plush flip seats and elegant dark glass to convenient one-button start, every enhancement elevates comfort and sophistication, making every ride a premium experience.
Water transfer printing instrument panel (with leather grain)
transfer printing instrument panel (without leather grain)
Flip Seat
Dark Brown Flip Glass
Steering Wheel Style Change
Steering Wheel with Integral Clip
3-Point Seat Belt
Custom parts
Custom parts bring unique personalization to your golf cart. From intricate seat embroidery to bespoke controllers, every custom detail reflects the owner’s distinct style. With these customizations, your vehicle becomes a personal statement of identity and taste.
Bumper LOGO customization
Custom Seats with Embroidered LOGO
Front Cover LOGO Customization
Net LOGO Customization
Rain cover with LOGO customization
Flip-Down Storage Box Under Seat with Lock
Golf Cart Charging Gun
Wheel Upgrade
Wheel upgrades provide your golf cart with unmatched adaptability. Whether you choose refined road tires or robust off-road options, each selection ensures smooth and stable driving across diverse terrains, offering a flawless driving experience.
Tire size can be upgraded!
Road Tire
Wheel style can be upgraded！
Rims
Rust-proof Upgrade
Fully electric and zero-emission, the BAK golf cart is not only a means of transportation, but also a loving tribute to high-quality life and a green earth. Diverse choices and personalized colors make every trip a dual declaration of personality and envir.
Semi-Aluminum Frame
Power Upgrade
Power battery upgrades energize your golf cart with sustained power. Choose from 48V200Ah or 72V150Ah batteries to ensure long-lasting performance and extended range, empowering your adventures to go further with confidence.
| Power upgrade | Standard version | Upgrade Ⅰ | Upgrade Ⅱ | Upgrade Ⅲ |
| 48V150Ah | 48V200Ah | 72V100Ah | 72V150Ah | |
| Nominal Voltage (V) | 48 | 48 | 48 | 48 |
| Nominal Capacity(Ah) | 100 | 100 | 100 | 100 |
| Rated Energy(kWh) | 4.8 | 4.8 | 4.8 | 4.8 |
| Cell Material Type | LiFePO4(LFP) | LiFePO4(LFP) | LiFePO4(LFP) | LiFePO4(LFP) |
| Battery Case Materia | Cold-rolled Steel | Cold-rolled Steel | Cold-rolled Steel | Cold-rolled Steel |
| Battery Weight (kg) | 52 ± 3 | 52 ± 3 | 52 ± 3 | 52 ± 3 |
